SPECIFICATIONS

PRODUCT INFORMATION

• • MANUFACTURER: Fisher & Paykel
  • IN THE PACKAGE: SleepStyle Auto CPAP Machine with ThermoSmart Heated Humidifier, Carrying Case, 2 Filters, ThermoSmart AirSpiral Heated Breathing Tube, Humidifier Chamber, Power Cord, InfoUSB SmartStick, User Manual, 2-Year Manufacturer’s Warranty. Select additional options and accessories in your shopping cart.
  • PART NUMBER(S): SPSABU (SleepStyle Auto), SPSAAU

• WARRANTY: 2 Years – Review manufacturer’s documentation for full warranty details.
• INTENDED USE: The device is intended to treat Obstructive Sleep Apnea (OSA) by delivering a flow of continuous positive airway pressure (CPAP) at a level prescribed by the physician to splint open the airway and prevent airway collapse.
• PRESCRIPTION ITEM: Prescription required for the purchase of this item.
• COUNTRY: New Zealand (Typical Origin)

PHYSICAL SPECIFICATIONS

• AVAILABLE COLOR(S): Black
• SIZE (APPROX): 5.7 x 7.0 x 7.2 Inches
• WEIGHT (APPROX): 3.7 Lbs

PERFORMANCE SPECIFICATIONS

• THERAPY MODES: CPAP, Auto-CPAP (APAP)
• PRESSURE RANGE: 4-20 CM H2O
• RAMP: Fixed 20 Minute Duration with SensAwake
• RAMP START: CPAP Mode = 4 CM H2O or 1/3 of Prescribed Pressure (Whichever is Greater); Auto-CPAP Mode = Minimum Pressure
• SOUND LEVELS: 28 dBA
• ALTITUDE ADJUSTMENT: Automatic Up To 9000 Feet
• LEAK COMPENSTATION: Automatic
• COMFORT TECHNOLOGY: SensAwake, Expiratory Relief (Settings = 1 Minimum, 2 Moderate, 3 Maximum)
• RAINOUT REDUCTION: Optional ThermoSmart Heated Tubing
• FILTERS: Disposable (Ultra Fine)

COMPATIBILITY

• MASKS: Compatible with all CPAP & BiLevel Masks.

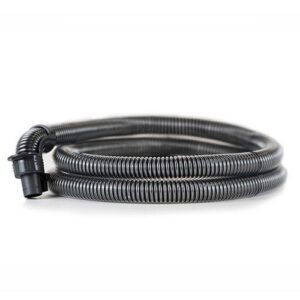

• TUBING: Compatible with all Standard, Standard Performance and SleepStyle TheromSmart Heated Tubing.
• HUMIDIFIERS: Built-in ThermoSmart Heated Humidifier
• OXYGEN: NOT Compatible with Supplemental Oxygen

THERAPY DATA & COMPLIANCE

• DATA STORAGE: Onboard, InfoUSB SmartStick
• DATA INCLUDED: The InfoUSB will store up to 5 years of summary efficacy data, 365 days of detailed efficacy data, and 140 hours of high-resolution pressure, leak and flow data. Without an InfoUSB, the device’s internal memory is capable of storing up to 1 year of summary efficacy data, 30 days of detailed efficacy data, and 20 hours of high-resolution pressure, leak, and flow data.

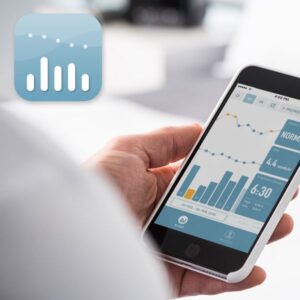

• DATA VIEWING: SleepSmart App (IOS & Android), F&P SleepStyle Website, On Screen, or via InfoSmart Software (For Healthcare Professionals))

HUMIDIFIER SPECIFICATIONS

• HUMIDIFIER: Built-in ThermoSmart Heated Humidifier
• CHAMBER CAPACITY:380 mL to Maximum Fill Line
• HUMIDIFIER CHAMBERS: Long Life Dishwasher Safe
• HUMIDIFIER NOTES: The SleepStyle device may be operated with an empty humidifier chamber as long as the humidity level is set to 0 Off.
• HUMIDIFIER POWER: NA (Built in to CPAP Device)
• HUMIDIFIER SETTINGS0 Off to 7 Maximum

POWER SPECIFICATIONS

• AC (WALL) POWER: 100-115 VAC, 50-60 Hz, 1.2 A
• AC POWER SUPPLY: No, Slimline Power Cord Only
• AC POWER CORD LENGTH: 8 Feet (Approx)
• POWER CONSUMPTION: 39 Watts Typical, 76 Watts Peak
• DC (MOBILE) POWER: No, Use Power Inverter
• BATTERY POWER: Optional External Accessory
