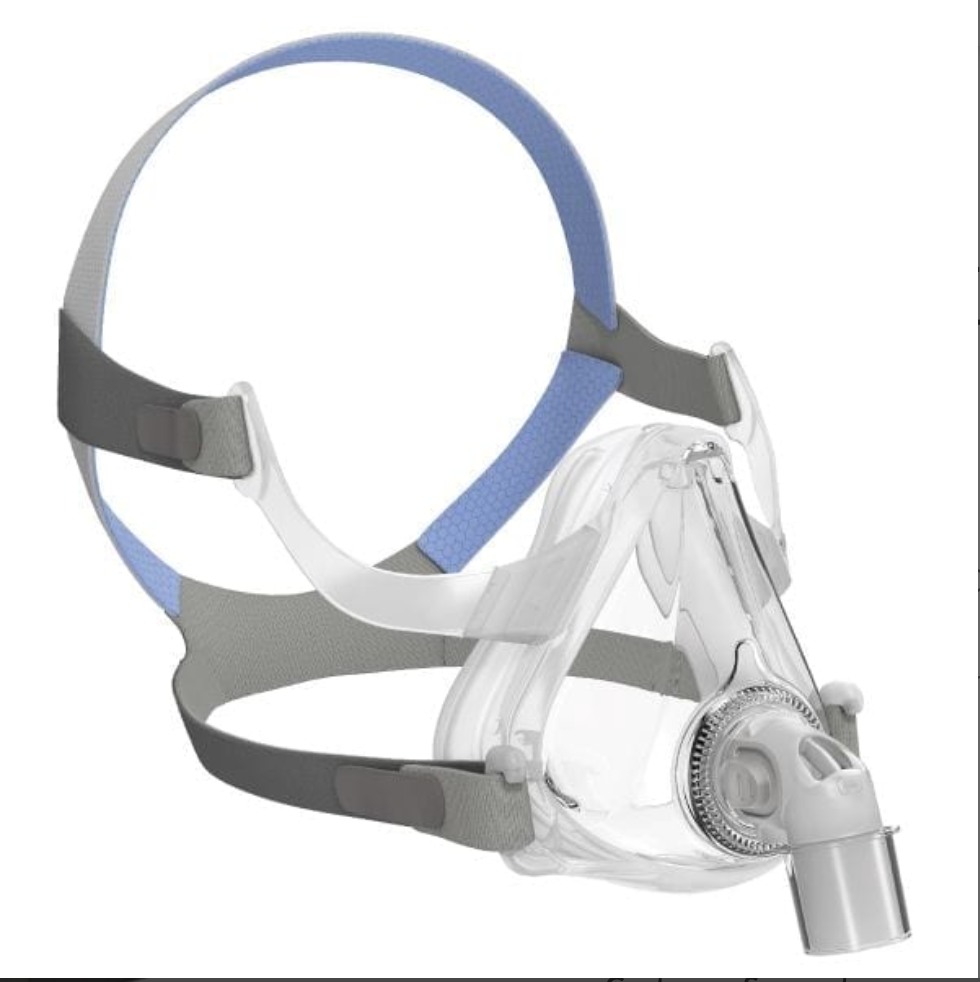

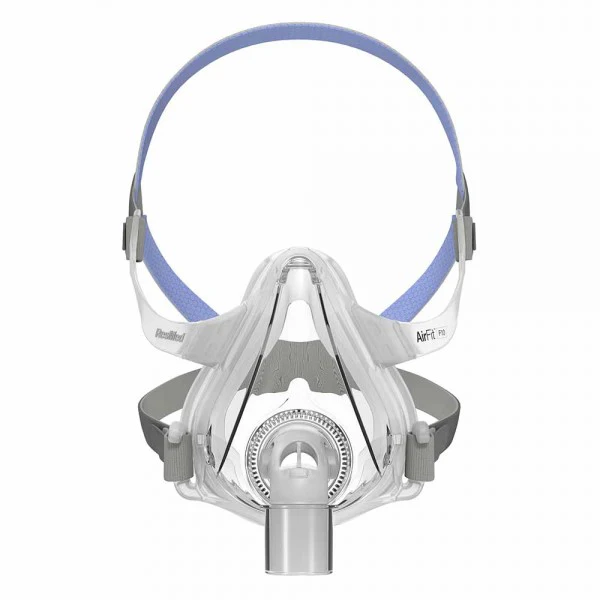

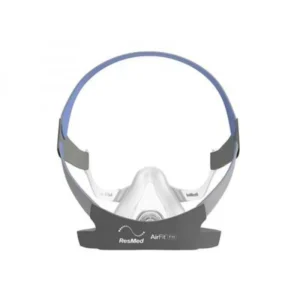

ResMed AirFit™ F10 Full Face CPAP / BiPAP Mask With Headgear
$154.00
ResMed AirFit™ F10 Full Face CPAP / BiPAP Mask With Headgear.
The ResMed AirFit F10 Full Face CPAP Mask is the latest Full Face Mask in ResMeds’ new AirFit™ line, featuring a compact and lightweight frame offers a clear line of sight. The Spring Air cushion is a soft, secure seal around the nose and mouth. The AirFit F10™ Mask is made of only 4 parts, – elbow, frame, cushion, and headgear making it easy to clean and reassemble. The AirFit F10™ also features ResMed’s innovative headgear that supports the mask without the need of a forehead support for super easy detachment and reattachment without constant adjustments. The cushion attaches to the frame with a simple click and removes with a squeeze. This mask weights less than 5 ounces.
FEATURES:
- Superior Comfort
- Spring Air™ Dual-Wall Cushion that is both comfortable and effective,
- SoftEdge™ Headgear that features slimmed-down straps for maximum comfort and fewer facial marks.
- Easy to use and clean with 4 part assembly
- Ultra Quiet with circular vent
- Proven Performance.
- Lightweight Materials
- Just Four Parts
- No Forehead Support
- Quick Connect Elbow
- (1) Frame
- (1) Cushion
- (2) Soft Wraps
- (1) Headgear
- (1) Elbow
- (1) Swivel
| Size or Type | Large, Medium, Small |
|---|
Fitting Guide
AirFit F10 For CPAP Mask Template
Fitting and Adjust your ResMed AirFit F10 CPAP Mask.
- Remove the elbow from the mask by pressing the side buttons and pulling it out.
- Take off the lower headgear straps and hold the cushion to the face.
- Align the bottom with the crease of the chin and the top with the corner of the eye.
- Then pull the headgear over the head.
- Undo the fastening tabs on the upper headgear straps.
- Adjust both straps evenly until the mask feels stable, then reattach the tabs.
- Bring the lower straps below the ears and loop the headgear into the lower hooks on each side of the frame.
- Adjust the lower headgear straps evenly until the mask feels stable.
- The fitting should be firm yet comfortable. Do not over-tighten.
- Connect device air tubing to the elbow, then attach the elbow to the mask by pressing in the side buttons, then push it into the mask.
- Turn on the device so it blows air.
- The patient now lies down to make any final adjustments if required.
- Undo the tabs on the upper headgear straps.
- Reposition both straps evenly, only enough so a seal is achieved, then reattach the tabs.
- The mask is now ready to use.
FAQ's
Q: Does this mask work with the AirMini?
A: No, this mask is NOT compatibale with AirMini. The compatible masks for AirMini CPAP Machine are AirFit N20, AirFit F20, AirFit P10 that comes with the set up pack, and the AirTouch F20 are compatible with the AirMini.
What are the sizes of headgear?
A: The AirFit F10 mask offers small, standard, and large in the blue color. There is only one AirFit F10 for Her Headgear, and it is equivalent to an AirFit F10 blue size small, but is in the color pink.
