ResMed Mobi Portable Oxygen Concentrator (Pulse Dose)
ResMed Mobi Portable Oxygen Concentrator (Pulse Dose)
Discontinued 2020
100% Secure Check Out
100% Secure Checkout
24/7 LiveChat

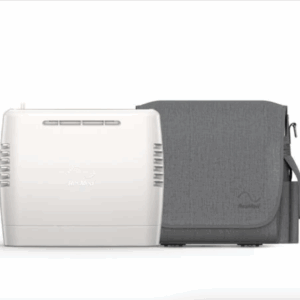

The ResMed Mobi Portable Oxygen Concentrator (Pulse Dose) is a compact and portable oxygen concentrator for respiratory therapy users. Mobi balances powerful pulse wave oxygen therapy along with a long battery life and a stylish non-medical design. Mobi is intelligently designed with a user friendly interface, DC and AC power cords, multiple battery options, and ResMed’s legendary attention to detail and quality. Weighting at only At 5.5 POUNDS, Mobi is approved by the FAA for use on all commercial flights within the US and all international flights that depart or arrive in the US. A 5-Year Manufacturer’s Warranty is included.
Key Feature
- Compact: The ResMed portable oxygen concentrator has the dimensions 8.0 x 9.6 x 4.5 Inches. This makes it small and handy so that you can carry it around with you in a backpack or handbag, and it is always near for use.
- Excellent battery life and runtime: The concentrator has a long and excellent battery life. The internal battery lasts for a total of 300 cycles, and the external battery can last up to 500 cycles. The runtime depends on the setting of the machine. For the internal battery, it lasts for 3.2 Hours at Setting 4 and can go up to 8.6 Hours at Setting 1. The External battery lasts 4.5 Hours at Setting 1 and 1.6 Hours at Setting 4.
- Lightweight: ResMed oxygen concentrator weighs only 5.5 pounds and is exceptionally lightweight and portable.
- Disposable filter: The filters are disposable and come in both standard and hypoallergenic types. The hypoallergenic filter type poses fewer risks to allergic reactions for more sensitive skin.
- Five-year manufacturer’s warranty: The ResMed portable oxygen concentrator comes with a five-year manufacturer’s warranty. If you face any problems with the functioning of the machine within five years of using the machine, you can contact the manager, and your device will be taken care of.

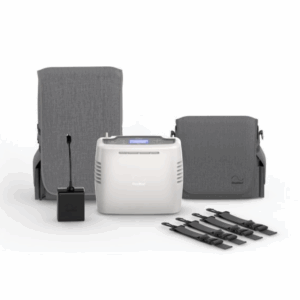

- Complete kit: The machine comes with a full kit and custom carrying case with a shoulder strap. It contains the MOBI portable oxygen generator, a cannula, and a filter. It also has an internal battery and both AC and DC power chord. The kit will also include a printed user guide and a warranty for any doubts or problems you may have.
In the box:
- (1) Machine
- (1) Internal lithium ion battery
- (1) Carrying bag
- (1) A/C wall power supply
- (1) D/C car power supply
- (1) Cannula
- 5 Year Warranty
Specifications
PHYSICAL SPECIFICATIONS
- SIZE (APPROX): 8.0 x 9.6 x 4.5 Inches
- WEIGHT (APPROX): 5.5 Lbs
- DISPLAY TYPE: LCD
- MATERIALS: DEHP Free
- Phthalate Free
- PVC Free
OXYGEN PERFORMANCE SPECIFICATIONS
- CONTINUOUS SETTINGS: Not Applicable
- PULSE DOSE SETTINGS: 1 to 4
- OXYGEN CONCENTRATION: 90% +6%/-3% at All Settings
- OXYGEN PERCENTAGE INDICATOR: Yes. Audible & On Screen Low Oxygen Purity Alarm.
- START UP / WARM UP: 5 Minutes
- SOUND LEVELS: 38.2 dBA Typical at Setting 2 (Typical)
- OPERATING ALTITUDE: Up to 10,000 Feet
- TUBING & CANNULA LENGTH: Up to 7 Feet (Maximum)
- FILTERS: Disposable (Standard & Hypoallergenic Available)
ALARMS: No Breath Detected, Low Battery, Low Oxygen Purity, High Temperature, Reset Required.
POWER SPECIFICATIONS
- AC (WALL) POWER: Universsal 100-240 VAC, 2.0-1.0 A, 50-60 Hz
- AC POWER SUPPLY: Yes
- AC POWER SUPPLY SIZE: 2.25 x 1.25 x 5.35 Inches (Approx)
- AC POWER SUPPLY WEIGHT: 0.75 Inches (Approx)
- AC POWER CORD LENGTH: 10 Feet (Approx)
- DC POWER SUPPLY SIZE: 4.375 x 2.125 x 1.250 Inches (Approx)
- DC POWER SUPPLY WEIGHT: 0.5 Lbs (Approx)
- DC POWER CORD LENGTH: 70 Inches (Approx)
- DC POWER INPUT: 11-16 VDC
- BATTERY POWER: Internal & (Optional) External
BATTERY SPECIFICATIONS
- BATTERY TYPE: Rechargeable Lithium Ion (Li-Ion)
- BATTERY CAPACITY: Internal = Lithium-ion 14.4 VDC; External = 14.8 V, 4400 mAh / 65 Wh
- BATTERY SIZE: Internal Built into Unit; External = 3.15 x 4.00 x 2.00 Inches (Approx)
- BATTERY WEIGHT: Internal = (Built into unit); External = 1.1 Lbs (Approx)
BATTERY RUN TIME: Internal = 8.6 Hours at Setting 1, 6.0 Hours at Setting 2, 3.8 Hours at Setting 3, 3.2 Hours at Setting 4; External = 4.5 Hours at Setting 1, 3.0 Hours at Setting 2, 1.9 Hours at Setting 3, 1.6 Hours at Setting 4. (Average) - RECHARGE TIME: Internal = 3.6 to 6.1 Hours; External = 1.8 to 3.1 Hours (Typical Per Battery)
- BATTERY LIFE: Internal = 300 Cycles; External = 500 Cycles (Average
- BATTERY NOTES: Batteries will charge whenever sufficient AC or DC Power is available. Battery run time measured at approximately 20 BPM. For best results, recharge the external batteries as often as possible. Avoid leaving the device or external battery in a hot environment, especially if exposed to direct sunlight. For long term storage of the external battery, it is recommended that a charge of approximately 40% be maintained on the battery.
FAQ
- Does the kit include both internal and external battery for the ResMed portable oxygen concentrator?
The kit does not come with both the internal and external battery. The internal battery is included in the kit, but the external MOBI battery is sold separately. - Does the device have a very complex interface?
No. MOBI is designed intelligently and has a user-friendly interface that is extremely engaging and easy to use. It has a stylish non-medical design, which makes it attractive. The kit also includes a printed user guide to address any queries you may have about using the device. ResMed is famous for its attention to detail, so you will never have to worry about its design! - How long does it take for the ResMed oxygen concentrator battery to recharge?
The battery is extremely powerful and recharges quickly. The internal battery takes between 3.6 and 6.1 hours to recharge at a time. The external battery will take 1.8 to 3.1 hours to charge, but it must be purchased separately as it does not come with the kit. - Is there any warranty on this product?
Yes! The ResMed MOBI portable oxygen concentrator comes with a warranty of five years from the manufacturer. The manufacturer’s warranty is included in the kit so if you ever face any problems you can always get in touch with us! - How to decide between different oxygen concentrators?
Oxygen concentrators can come with a variety of different specifications. It is essential to check the kind of therapy they offer (e.g., ResMed offers pulse wave oxygen therapy), the battery life and strength, and the design of the product. It will also be valuable to check out size and dimensions to determine portability if you are looking for an oxygen concentrator that will allow you to remain active. - What are the input ranges for AC and DC?
The AC and DC input ranges vary. The AC input range is a universal 00-240 VAC, 2.0-1.0 A, 50-60 Hz. For DC, the input range is 11-16 VDC. Both AC and DC are available with the kit.
User Manual
- Starting therapy
- Open the carry bag and attach the strap (with the zip side up and facing outwards).
- Turn the oxygen port into an upright position and attach the nasal cannula.
- Return the oxygen port to a horizontal position and check to ensure the cannula is secure.
- Press and hold the power button to turn Mobi on.
- Check the display screen to ensure Mobi is set to your prescribed setting.
- Put the nasal cannula on, with the prongs in your nostrils and tubing around your ears.
- Adjust your cannula to a secure, comfortable length and start to breathe normally.

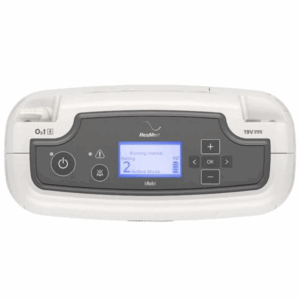

- Check the display screen to ensure therapy has started. A blinking wave symbol indicates breath is detected and oxygen is dosed.
- It is recommended you wait 5 minutes to ensure therapy is working correctly before closing the bag.
- Using the external battery
- Place the external battery into the side pocket of the carry bag.
- Connect the external battery to the external battery port on Mobi by threading the adaptor (flat side up) through the small opening in the bag.
- Close up the side pocket.
- Open the main compartment and connect Mobi to an AC or DC power supply.
- Check the display screen to ensure Mobi is charging. A power plug symbol with the words “Charging external” and a battery bar symbol with the letters “EXT” indicate the external battery is charging.
Maintenance
- Cleaning the fan vents
- Open the main compartment and check that Mobi is off.
- Unzip the side zip to release Mobi from its compartment.
- Lift Mobi out of the carry bag and set aside.
- Inspect the bag to ensure there is no build-up of lint or dust that could obstruct the flow of air through the mesh vents.
- Clean each of the bag’s mesh vent panels, inside and out, with a dry cloth.
- Once the bag is clean, inspect Mobi and ensure its fan vents are not obstructed by any lint or dust.
- Using a dry cotton swap, clean each of the fan vents individually.
- Place Mobi back inside the carry case when finished.
Note: It is recommended the bag mesh panels and Mobi vents be cleaned at least once a month.
